022 - Kraftstoffleitungen

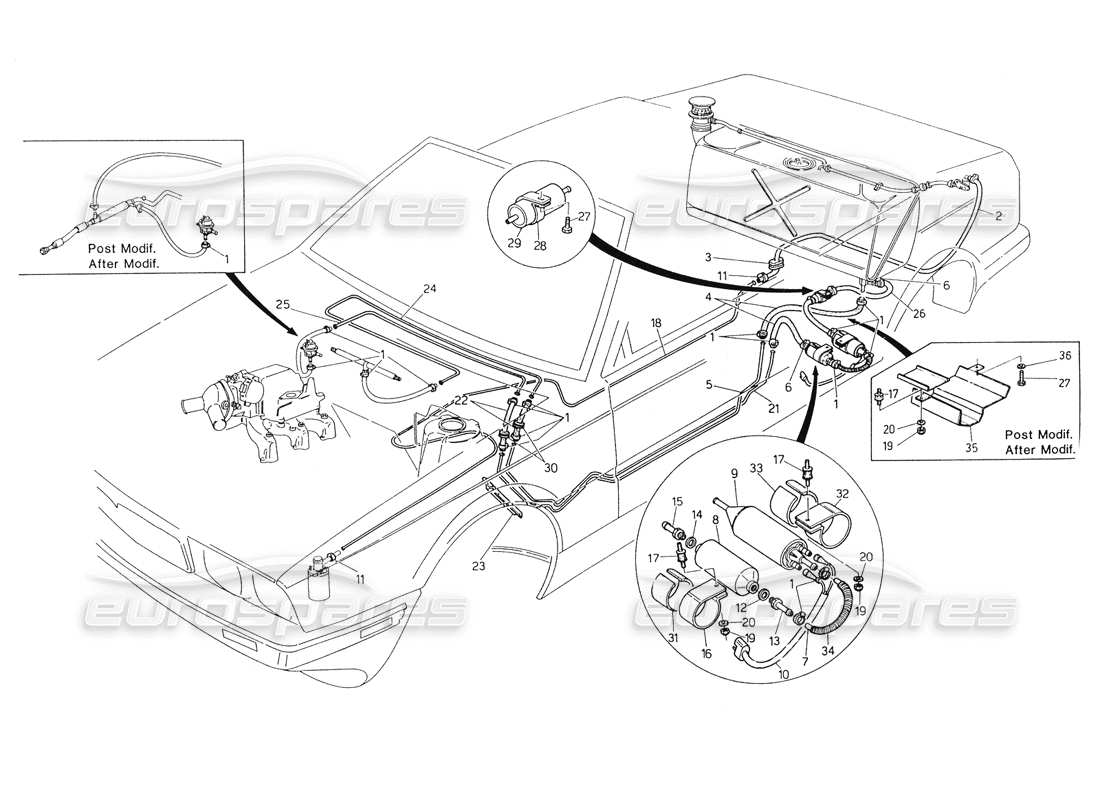

Maserati Biturbo Spider Fuel Pipes Teilediagramm
Sehen Sie sich die Explosionszeichnung der Teile an, um das gesuchte Teil zu finden
- Sie können das Diagramm durch Ziehen neu positionieren
- Sie können das Diagramm vergrößern und verkleinern, indem Sie scrollen, die Finger zusammenziehen oder verwendenUndTasten
- Sie können das Diagramm mit zurücksetzenTaste
Sehen Sie sich alle Teilepreis- und Verfügbarkeitsinformationen in der Teiletabelle an Nach rechtsunten
- Sie können auf einen Hotspot klicken im Teilediagramm, um das Teil in der Tabelle zu finden
- Sie können den Optionsfilter auf der Registerkarte „Filter“ verwenden, um Teile auszublenden, die für Ihre Suche nicht relevant sind
Wechseln Sie zwischen anderen Teildiagrammen mitUndKlicken Sie auf die Schaltflächen oder verwenden Sie die Diagrammbilder unten
Für ein optimales Erlebnis empfehlen wir die Anzeige dieser Seite im Querformat
Teilschlüssel
ST
Teil auf Lager
PS
Erhältlich im Teilesatz
SS
Teilersatz auf Lager
PS
Erhältlich im Teilesatz auf Bestellung (je nach Verfügbarkeit)
SO
Teil bestellbar (je nach Verfügbarkeit)
PK
Erhältlich im Teilesatz
# 001
MPN: 559221343
KLEMME
Ersetzung
Ersetzung
# 002
MPN: 319220391
ENTLÜFTUNGSROHR
Ersetzung
Ersetzung
# 003
MPN: 319220396
TÜLLE
aus £1,60
aus £1,60
# 004
MPN: 319220357
HÜLSE AN ANSCHLUSS, RÜCKLAUFLEITUNG ZUM KRAFTSTOFFTANK
Gültig für 00, 40, 41
aus £7,48
aus £7,48
# 004
MPN: 319237357
HÜLSE AN VERBINDUNG, KRAFTSTOFFFILTER AN FÖRDERLEITUNG
Gültig für 02, 03, 10, 11, 44, 45
# 005
MPN: 339232350
STIFE-KRAFTSTOFF-RÜCKLAUFLEITUNG
aus £6,46
aus £6,46
# 006
MPN: 319220113
KLEMME
aus £1,11
aus £1,11
# 007
MPN: 319230506
HÜLSE AN ANSCHLUSS, PUMPE AN FILTER
Gültig für 00, 40, 41
# 007
MPN: 319237506
ÄRMEL
Gültig für 02, 03, 10, 11, 44, 45
aus £7,40
aus £7,40
# 008
MPN: 319220141
KRAFTSTOFFFILTER
Ersetzung
Ersetzung
# 009
MPN: 313720126
BENZINPUMPE
121727
aus £414,75
aus £414,75
# 010
MPN: 313720112
KABELBAUM DER KRAFTSTOFFPUMPE
aus £8,83
aus £8,83
# 011
MPN: 30921108
KLEMME
# 012
MPN: 319220424
Dichtung
aus £0,71
aus £0,71
# 013
MPN: 470072900
VERBINDER
aus £2,97
aus £2,97
# 014
MPN: 319220424
Dichtung
aus £0,71
aus £0,71
# 015
MPN: 470072800
AUSGANGSANSCHLUSS
aus £0,65
aus £0,65
# 016
MPN: 339220409
ZUM BEFESTIGEN KLEMMEN. FILTER
aus £5,25
aus £5,25
# 017
MPN: 319220139
FEDERHALTER
aus £3,05
aus £3,05
# 018
MPN: 339237350
ENTLÜFTUNGSROHR
Gültig für 02, 03, 10, 11, 44, 45
# 019
MPN: 128350060
NUSS
# 020
MPN: 169020406
Scheibe
aus £0,79
aus £0,79
# 021
MPN: 339232346
LIEFERKRAFTSTOFFLEITUNG
aus £6,32
aus £6,32
# 022
MPN: 319237404
ÄRMEL
Gültig für 00, 40, 41
# 022
MPN: 329210404
ÄRMEL
aus £1,16
aus £1,16
# 023
MPN: 329232414
BEWACHEN
Gültig für 02, 03, 10, 11, 44, 45
# 024
MPN: 329220131
GEKÜHLT UND LIEFERUNG VON KRAFTSTOFF
aus £5,66
aus £5,66
# 025
MPN: 329220417
KÜHL- UND KRAFTSTOFFRÜCKFÜHRLEITUNG
aus £0,47
aus £0,47
# 026
MPN: 319220344
HÜLSE ZUM VERBINDEN DES TANKS MIT DER PUMPE
aus £5,73
aus £5,73
# 027
MPN: 314320345
SCHRAUBEN
aus £42,92
aus £42,92
# 028
MPN: 319220369
KLEMME
aus £2,39
aus £2,39
# 029
MPN: 319220125
KRAFTSTOFFFILTER
Ersetzung
Ersetzung
Dieses Teil ersetzt die Teilenummer 319220126
# 030
MPN: 349200428
TÜLLE
# 031
MPN: 319220429
Dichtung
# 032
MPN: 339220408
KLEMME
# 033
MPN: 319220429
Dichtung, Schelle
# 034
MPN: 319220521
ÄRMEL
Gültig für 00, 40, 41
aus £2,61
aus £2,61
# 034
MPN: 319237522
ÄRMEL
Gültig für 02, 03, 10, 11, 44, 45
aus £2,11
aus £2,11
# 035
MPN: 339200412
WÄCHTERUNTERSTÜTZUNG (NACH MOD.)
aus £24,52
aus £24,52
# 036
MPN: 136110066
Scheibe (NACH MOD.)
